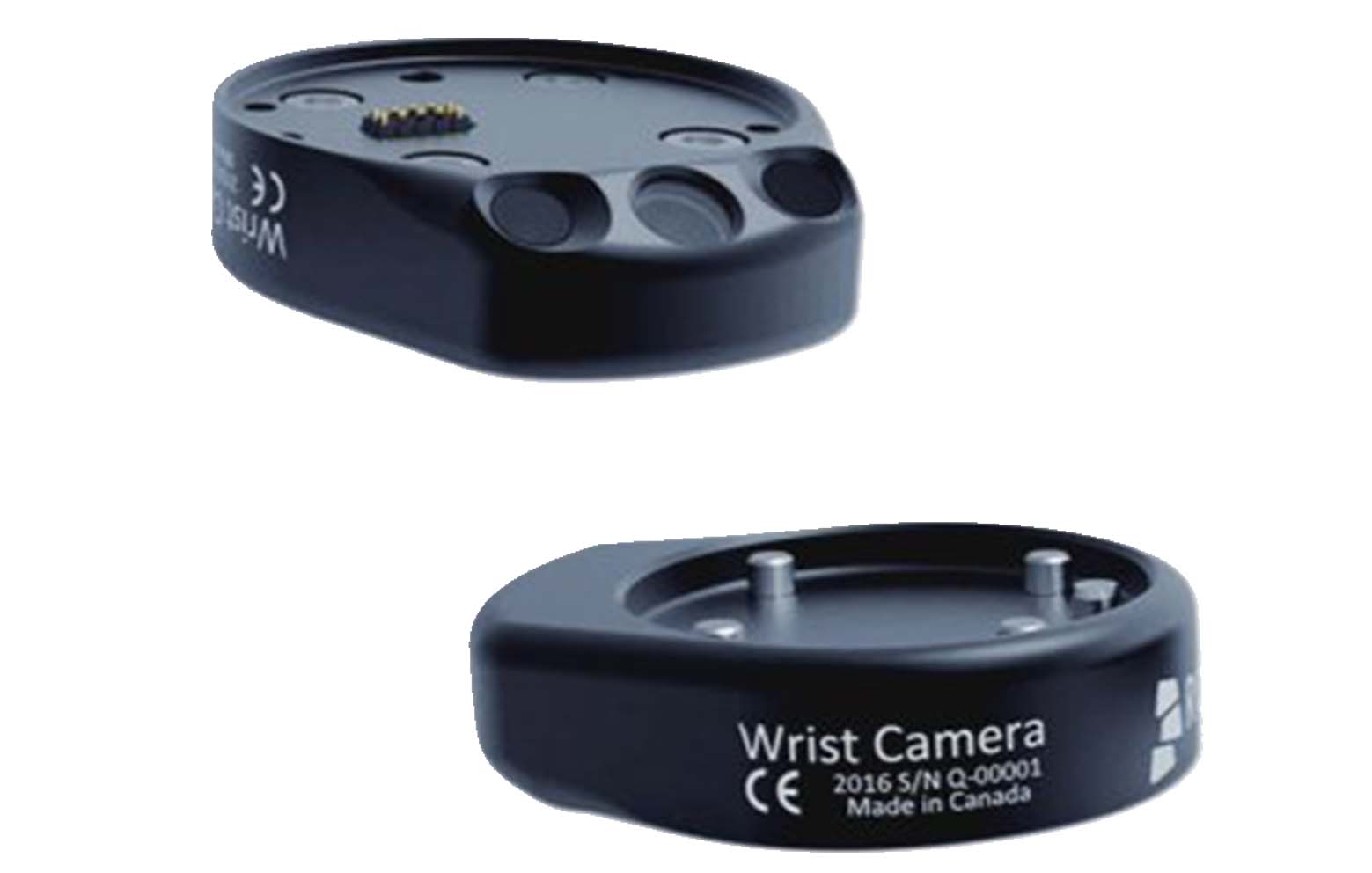

Wrist Camera
The Robotiq Wrist Camera is made for performing industrial applications with Universal Robots. It can be used to teach new parts quickly, detect parts and features automatically, and pick parts consistently—and get to production faster.
- Description
- Specifications
PLUG & PLACE COMPONENTS
Wrist camera provide consistent part detection with ease teach. Multiple products can be located simultaneously. Easy to attach and operate
- Locate parts automatically without jigs or fixtures
- Teach, edit, and run directly on the teach pendant
- Operate with ease, no matter your skill level
- Locate many parts in one snapshot
- Ensure consistent part detection
- Plug + Play on all Universal Robots
| RWC-UR-KIT | |
|---|---|
| Sensor | CMOS with Liquid Lens |
| Integrated Lighting | 6 LED Diffuse White Light |
| Min Field of View (cm) | 10x7.5 |
| Max Field of View (cm) | 36 x 27 | 64 x 48 | 100 x 75 |
| Supply Voltage | 4.5 - 28V DC |
| Resolution | 0.3 to 5 M pixels |
| Frame Rate | 2 to 30 fps |
| Focus | 70 mm to infinity |
| Supply Voltage | 24V DC |
| Interface | RS-485 / USB |
| Mounting | Direct on UR |
| UR Caps Plug In | Plug & Play |
| Interface | RS-485 / USB |
