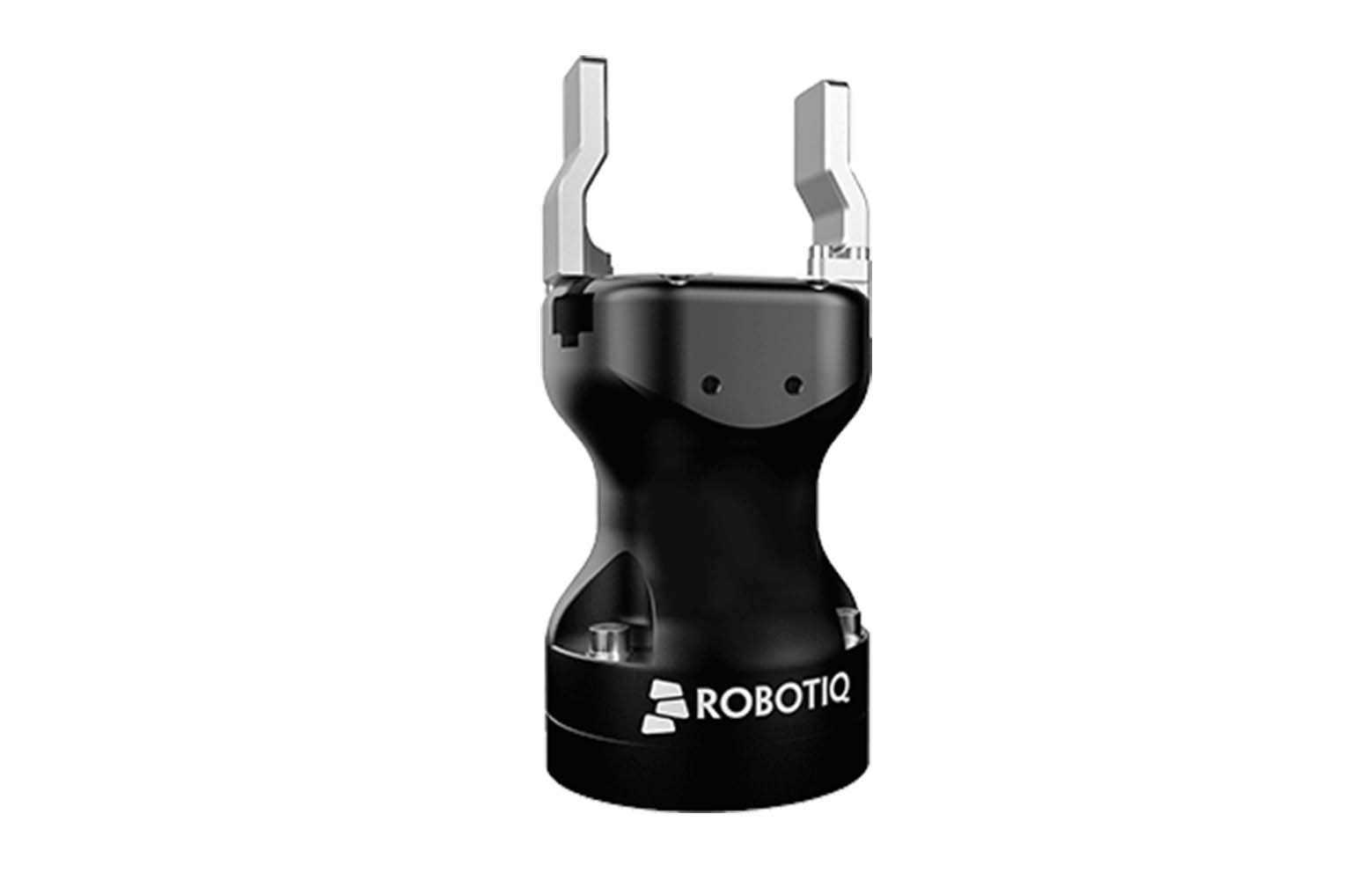

Hand-E Gripper
Hand-E is flexible, Plug + Play Gripper. It can be deployed easily across many stations because of its versatility.
Robotiq grippers take control of the projects to improve productivity and quality.
- Description
- Specifications
PLUG & PLACE COMPONENTS
Robotiq’s free gripping software adjusts to the gripper’s position, speed, and force till it grasps any object perfectly. Don’t need a background in robotics to use Robotiq Grippers. Install your gripper in just a few minutes with Plug + Play gripping kits, and use gripping software to program directly on robot’s touchscreen.
- Built for collaborative robots
- Multiple grip modes for working with any application
- Simple to program
- Automatic part detection, position feedback, & part validation
- Suit industrial needs
- High force and payload
- Precise and durable
| 3 Finger | |
|---|---|
| Gripper Configuration | Single |
| Pay Load - Encompassing Grip (Kg) | 5 |
| Pay Load - Friction Grip (Kg) | 3.3 |
| Stroke (mm) | 50 |
| Accuracy (mm) | - |
| Kinematics | Parallel |
| Gripping Force (N) | 60-130 |
| Stroke Time (mm/sec) | - |
| UR Caps Plug In | Plug & Play |
| Weight (Gripper/Bracket) (Kg) | 1 |
| Power Supply | 24 V DC |
| Protocol Supported (Default*) | Modbus RTU*/TCP, Ethernet IP, EtherCAT, PROFINET, CANopen, DeviceNet |
| Programmable Parameters | Position, Speed & Force Control + Lateral Finger Position for 3 Finger |
| Feedback | Grip detection, gripper position and motor current |
