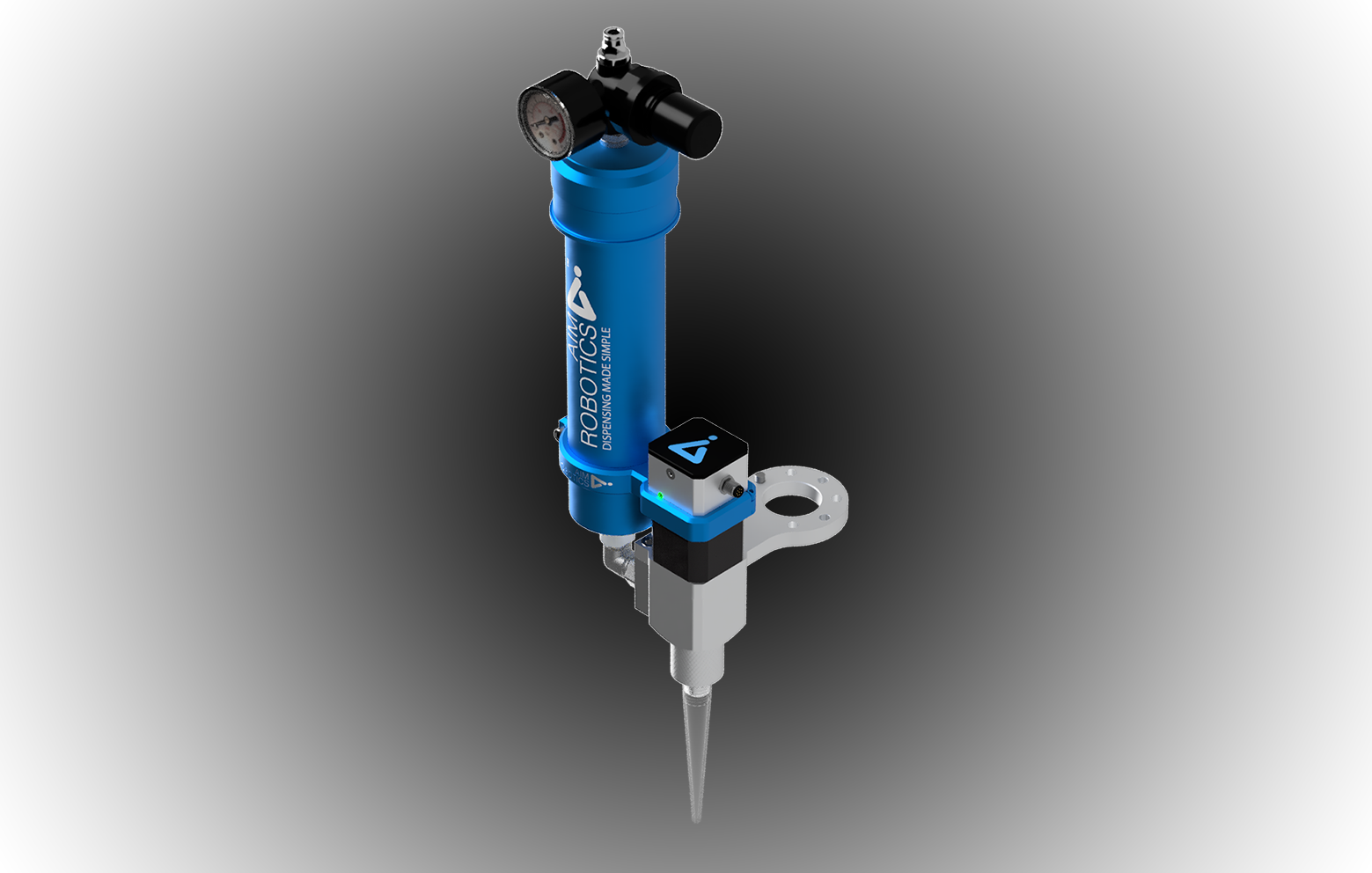

FD Series Material Dispensers

Aim Robotics provides a range of dispensing heads that can be mounted to automated robots to ensure accurate delivery of high viscosity fluids within a production setup. The systems are Plug & Play – once plugged in they do not require time or technical expertise to install.

Aim Robotics technology ensures professional quality – precise and reliable fluid dispensing exactly as specified (high tolerance control of volume, pressure, flow and fluid placement).

  • Description
  • Specifications
  • Gallery

Features

The FD Series Material Dispensers use screw pump principle to dispense medium to high viscosity fluids precisely and with high reproducibility.

Easy to Use

  • Plug&Dispense – up and dispensing in under 10 minutes
  • One easy-to-use software interface for all Aim Robotics Dispensers
  • Patented SteadyFlow technology ensures synchronous flow with robot TCP speed

Quality Control

  • AirLess Technology by Aim Robotics ensures minimal flow variation
  • One easy-to-use software interface for all Aim Robotics Dispensers
  • Automatic error detection and operator alert

Exchangable Auger Screws

  • 3 different size auger screws allow FD Series dispensers to be the perfect fit for most applications:
  • 5mm pitch – used when either additional inherit flow resistance is required and/or a finer deposit rate control is required. Lowest flow rate.
  • 7.5mm pitch – appropriate for most applications. Inherit resistance and material flow are moderate.
  • 10mm pitch – used when high flow rates and low resistance to flow are required.

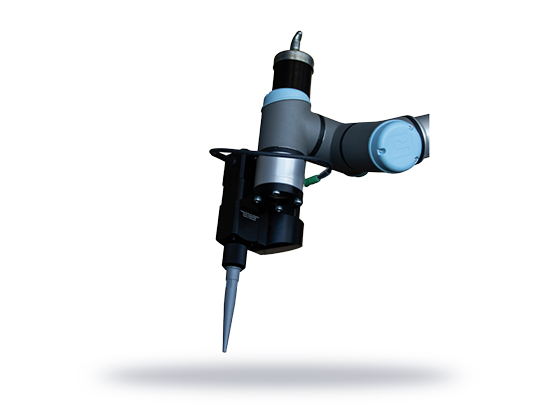

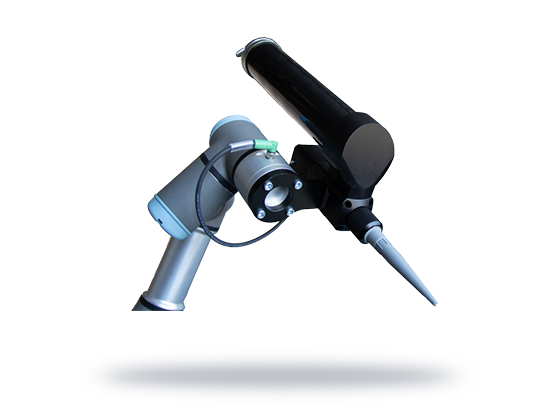

  • Built for collaborative robots
  • Native Universal Robots support
  • Single 8-pin connector – no need for air lines nor extra bulky power cables
  • Suitable for robots with payload of 3kg and up

FD Series SeadyFlow Material Dispensers

  • Plug&Dispense™ on Universal Robots

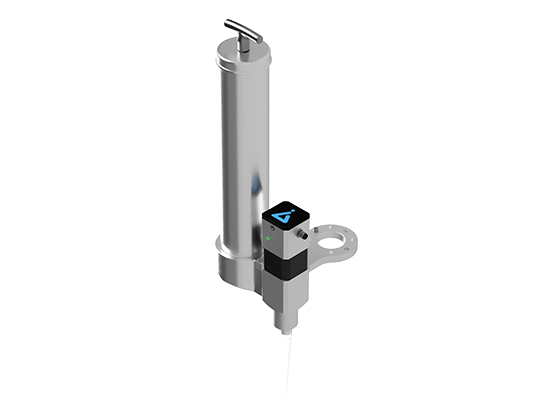

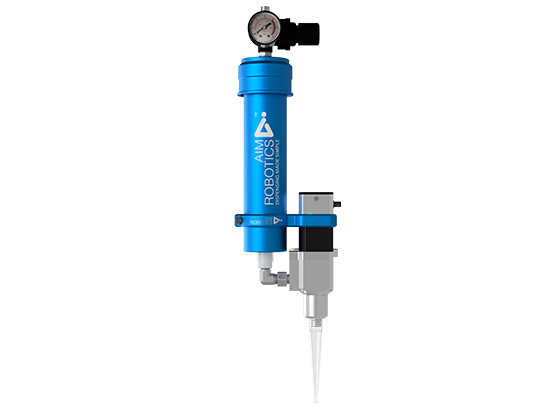

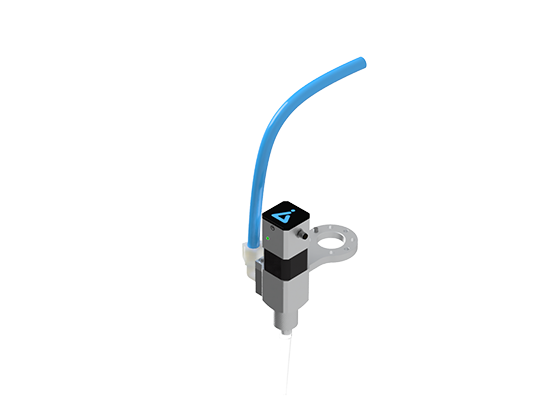

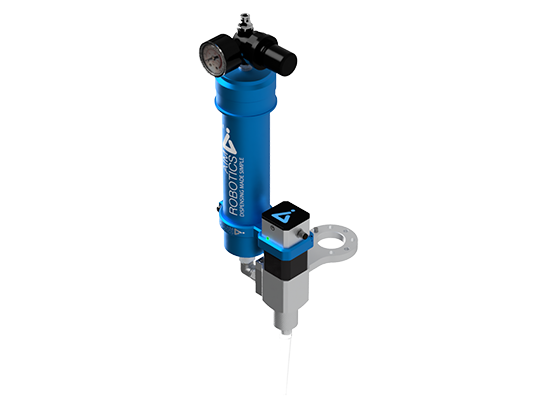

  • Modular system: 310ml, 400ml or external feed
  • Support for medium to high viscosity fluids

Applications

  • Lubrication/Greasing
  • Flux application
  • Sealant bead application
  • Edge Sealing
  • Adhesive application
  • Potting

Technical Data

  • Weight (without cartridge): 1.7kg
  • Dimensions: 135 x 145 x 390mm
  • Mechanical interface: ISO 9409-1, type 50-4-M6
  • Electrical interface: 8-pole M8
  • Digital interfaces: URCap, PolyScope ≥5.5
  • URCap, API ≥1.8
  • RS485
  • 24V I/O
