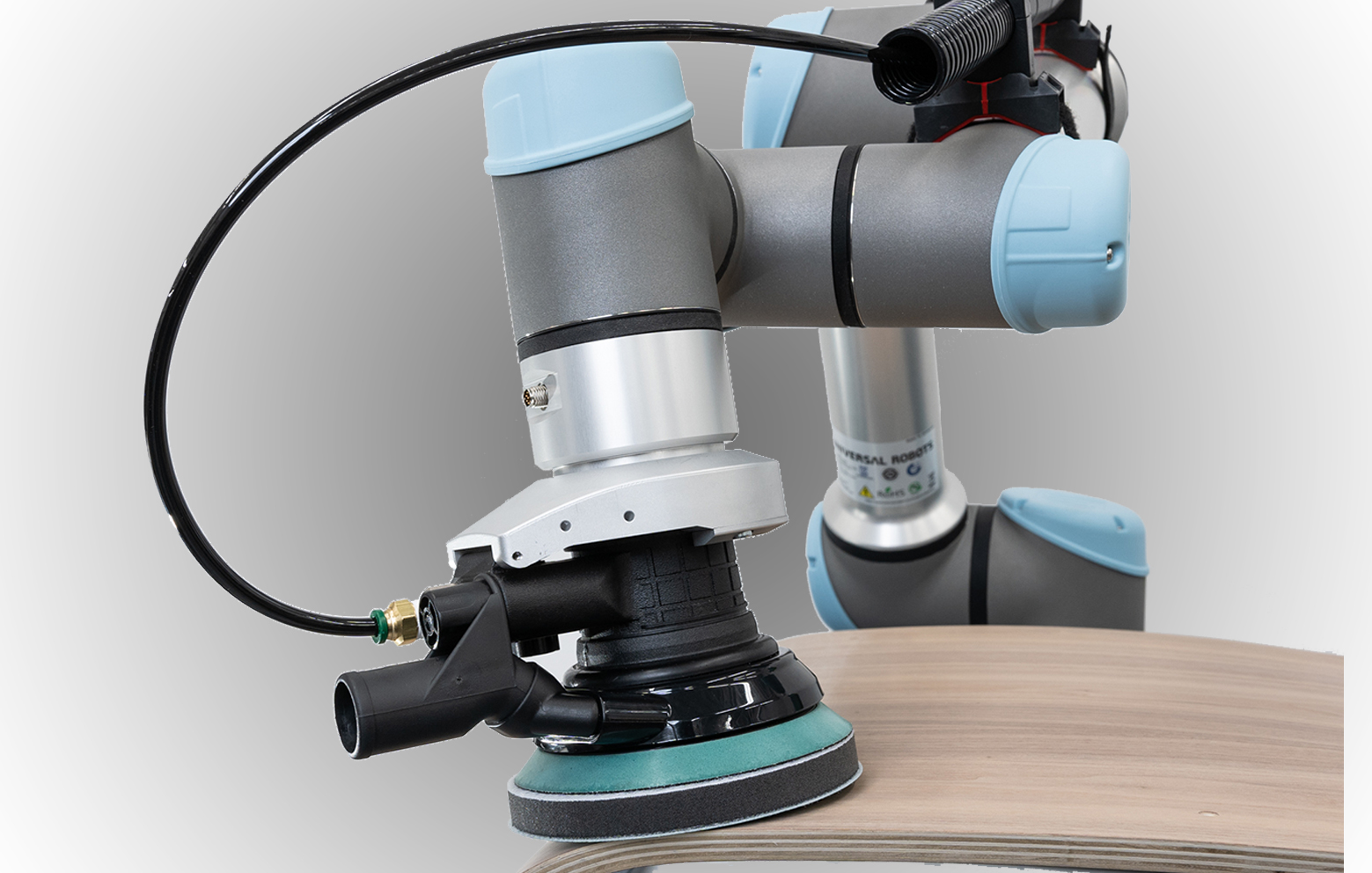

Sanding Kit
Sanding applications for collaborative robots require many hardware and software components to communicate together. Integration can take months… but not anymore! Our sanding kit is the only hardware and software all-in-one solution for cobots.
- Description
- Specifications
APPLICATION KITS
Robotiq is a pioneer in collaborative robot force control, and built our expertise by supporting hundreds of clients with their automation projects. Our best lessons learned over the past ten years are all included in the finishing quick-start guide. Use it to save hours of programming time. Teach six waypoints and let the Finishing Copilot software generate a complete path, applying consistent force at each cycle. Robotiq’s Sanding Kit covers a wide variety of product finishes like wood, plastic, metal, fiberglass, solid surface & carbon fiber.
Sanding Kit Included
- Orbital Tool
- Bracket
- Sanding Media
- Finishing Copilot
- Quick Start Guide
- Air control Accessories
- Easy to integrate, easy to use
- Reduce programming time from hours to minutes
- Automate sanding tasks the easy way
- The only hardware and software sanding solution for Universal Robots
- Increase quality and productivity
- Reduce worker injuries
| Random orbital sander | |
| Maximum air supply | 6.2 bar (90 PSI) |
| Air flow (full speed) | 450 L/min (16 SCFM) |
| Pad diameter | 5 inch |
| Media | Hook and loop; 5 holes |
| Orbit diameter | 3/16 inch |
| Maximum speed | 12,000 RPM |
| Air supply inlet | 1/4 inchNPT thread |
| Dust exhaust | Central vacuum ready; 1 inch (25 mm) diameter. |
| Robotiq bracket | |
| Weight 0.42 kg | 0.42 kg |
| Added height 9 mm | 9 mm |
| Compatible sanders | Dynabrade 56854B, 56819B, 56830B, 56863B, 56844B, 57404B, 57814B |
| Control valve | |
| Air supply inlet/outlet | 1/4 inch NPT thread |
| Sanding media kit | |
| Grits | 60, 80, 120, 320, 400 |
