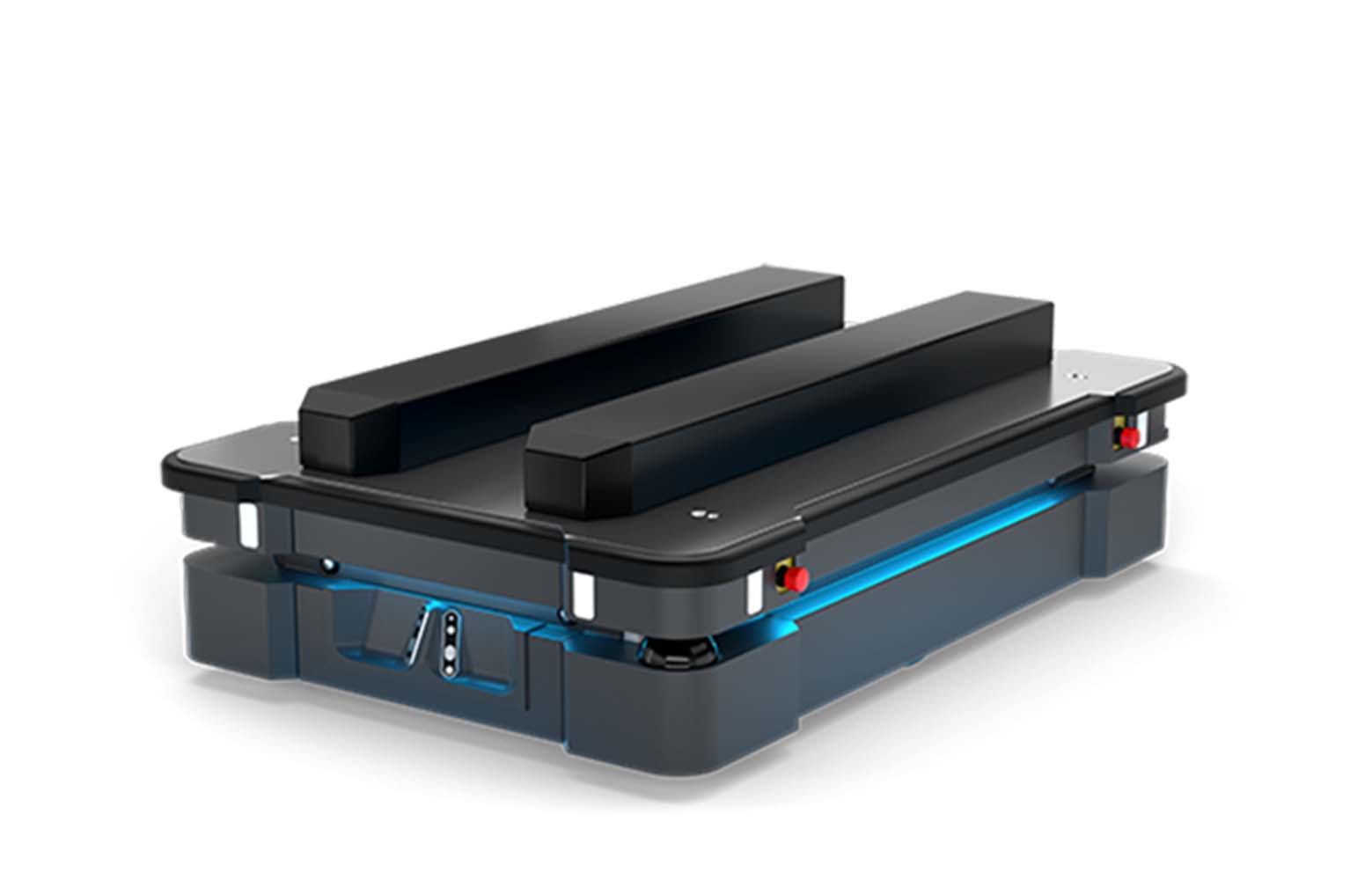

MiR500

MiR500 is designed to automate the transportation of pallets and heavy loads across industries. With a payload of 500 kg, speed of 2 m/sec and a footprint of 1350x920 mm, MiR500 is the largest, most powerful, fastest and robust collaborative, autonomous mobile robot from MiR.

  • Description
  • Specifications

HIGHLY FLEXIBLE

With the ability to quickly and easily integrate different top modules, the MiR500 can be equipped with pallet forks, conveyors, a robot arm or other options to support a wide range of applications.

COLLABORATIVE

The collaborative MIR500 safely maneuvers around people and physical obstacles. With its advanced technology and sophisticated software, the robot autonomously navigates to find the most efficient path to its destination. When it meets obstacles, it will automatically re-route to avoid costly lags in logistics processes. MiR500 is equipped with the latest laser-scanning technology that delivers a 360-degree visual for optimal safety. 3D cameras have a range of 30-2,000 mm above floor level to detect pallets.

EASE OF PROGRAMMING

There is no need to change the facility layout when operating the MiR500 as the function of wires, magnets or QR codes is replaced by sophisticated navigation software. Simply download CAD files of the facility to the robot or use its laser scanners to create a map - that’s all it takes to ensure a fast and cost-efficient implementation. The user-friendly MiR500 gives full control of the robot from the very start. MiR500 is controlled with the intuitive MiR Robot Interface via smartphone, tablet or PC, and can be programmed without any prior experience. The robot can also be integrated into your ERP system for a fully automated solution.

APPLICATION

With the MiR500 Pallet Lift, the MiR500 picks up, transports and unloads pallets autonomously, freeing up employees for more valuable tasks. MiR500 has a speed of 2 m/sec (7.2 km/hour) for extremely efficient transportation time. MiR500 is compliant with ISO/EN 13849 and fulfills the EMC requirement for industrial and light industrial use. The rugged MiR500 is designed for industry use with robust exterior that can withstand dropped cargo and can easily navigate up and down ramps and even through shallow water puddles.

    • Efficient transportation of payloads up to 500 kg with high speed
    • Optimizes your internal transportation of heavy loads and pallets and allows employees to focus on higher value activities
    • Eliminates material flow bottlenecks to increase productivity
    • Maneuvers safely and efficiently around people and obstacles in even highly dynamic environments
    • Requires no changes to existing facility
    • Extremely flexible and can be redeployed for different tasks with customized top modules
    • User-friendly interface that can be programmed without prior experience
    Excel To HTML using codebeautify.org
    MiR500
    Payload
    Robots Payload 500 kg (maximum 5% incline)
    Speed & Performance
    Running Time 8 hours
    Maximum Speed Forward: 1.2 m/s - 2.0 m/s
    Ramps and Inclines: 5% incline of 10 meter with 0.5m/s
    Turning Radius
    Positioning Accuracy
    Safety Sensors Laser Scanner; 3D Camera;
    Power
    Battery Li-NMC, 48 V, 40 Ah; Charging time: up to 1 hours
    External Charger Input: 100-230 V ac, 50-60 Hz / Output: 48 V, max 40 A
    Communication
    I/O connections 4 digital inputs, 4 digital outputs, 1 Ethernet port
    WiFi Dual-band wireless AC/G/N/B
    WiFi connection Router: 2.4 GHz and 5 GHz. WiFi adapter: 2.4 GHz and 5 GHz, 2 internal antennas.
    Power for top modules 48 V / 20 A, 48 V SafePWR / 20 A shared, 24 V / 2A.
    Communication protocol REST, Modbus
    Environment
    Ambient Temperature Range 5°C to 40°C (humidity 10-95% non-condensing)
    IP Class IP 21
    Dimensions
    Dimensions 1350 x 920 x 320 mm
    Height above floor 50 mm
    Robot Weight (without load) 250 kg
