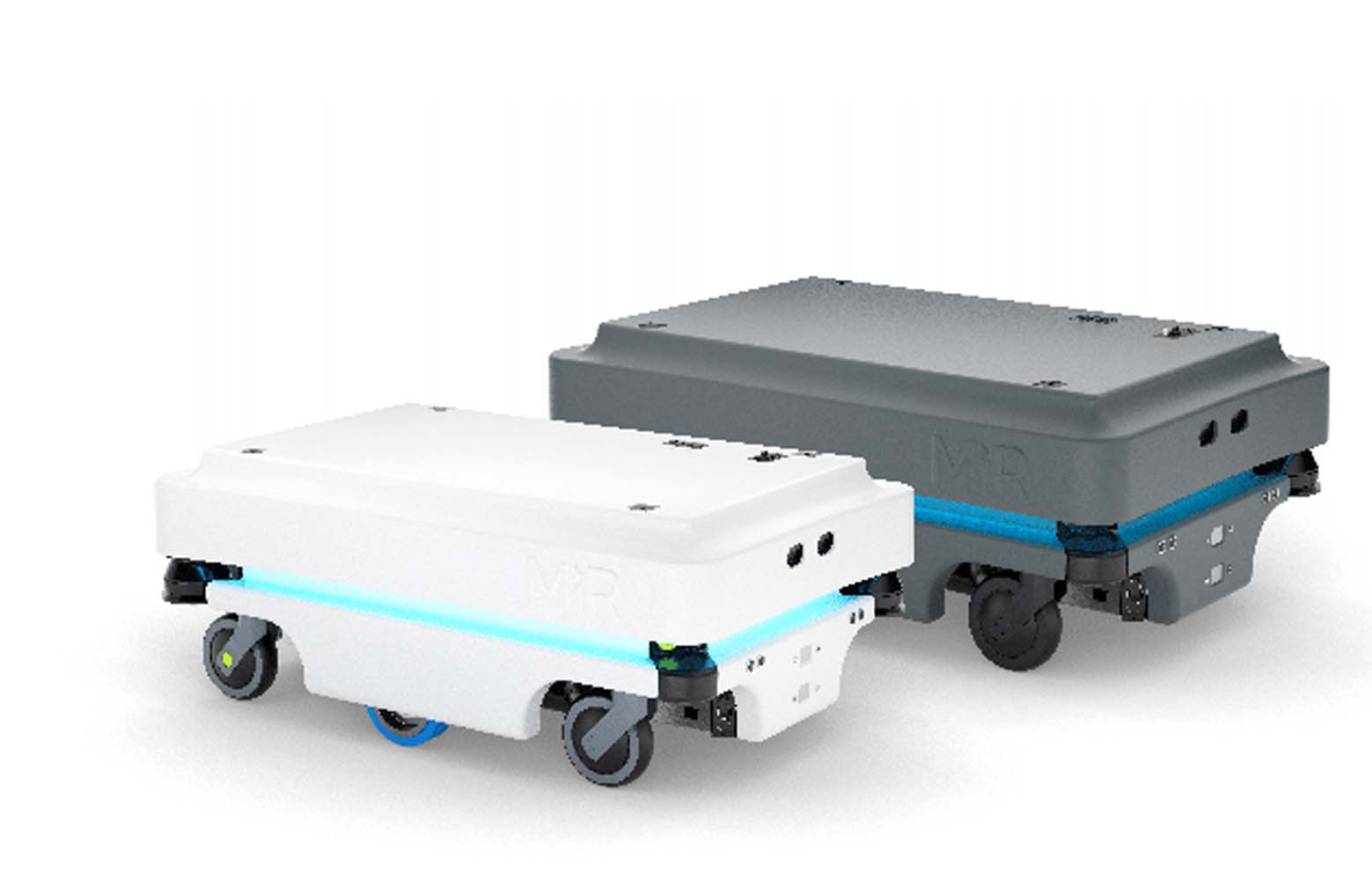

MiR100/200

MIR provides a safe, cost-effective mobile robot that quickly automates your internal transportation and logistics. The robot optimizes workflows, freeing staff resources so you can increase productivity and reduce costs.

  • Description
  • Specifications
  • Downloads

HIGHLY FLEXIBLE

The highly flexible MiR100/MiR200 autonomously transports up to 200 kg (440 lbs). It can be mounted with customized top modules such as bins, racks, lifts, conveyors or even a collaborative robot arm—whatever the application demands. Top modules are easy to change so the robot can be redeployed for different tasks.

COLLABORATIVE

The MiR200 robot safely maneuvers around people and obstacles, through doorways and in and out of elevators.With built-in sensors and cameras and sophisticated software, the MiR100/ MiR200 can identify its surroundings and take the most efficient route to its destination, safely avoiding obstacles and people.

EASE OF PROGRAMMING

CAD files of the building can be directly downloaded to the robot or it can be programmed with the simple, web-based interface that requires no prior programming experience. The robot’s mission can be easily adapted using a smartphone, tablet or computer connected to the network.

FAST PAYBACK

Without the need to alter the facility with expensive, inflexible wires or sensors, the MiR100/ MiR200 offers a fast return on investment, with payback in as little as a year.

APPLICATION

With extraordinary flexibility and smart technology, the MiR200 can be used in nearly any situation where employees are spending time pushing carts or making deliveries. Now these tasks can be automated, so employees can focus on higher value activities.

  • Installs quickly and easily without changing the workplace layout
  • Can be redeployed for different tasks with various top modules
  • Very user-friendly and is easily programmed with no prior experience needed
  • Allows employees to focus on high-value activities - not deliveries
  • Automate material handling and internal logistics
  • Enhance production flow and make significant progress
  • Safely and efficiently maneuvers around people and obstacles
  • Eliminates material flow bottlenecks to increase productivity
  • Offers fast ROI in as little as one year
Excel To HTML using codebeautify.org
MiR100 MiR200
Payload
Robots Payload 100 kg (maximum 5% incline) 200 kg (maximum 5% incline)
Towing Capacity 300 kg 500 kg
Speed & Performance
Running Time 10 hours or 20 km 10 hours or 15 km
Maximum Speed Forward: 1.5 m/s (5.4 km/h); Forward: 1.1 m/s (4 km/h);
Backward: 0.3 m/s (1 km/h) Backward: 0.3 m/s (1 km/h)
Turning Radius 520 mm (around center of robot)
Positioning Accuracy +/-50 mm of position, +/-10 mm to docking marker
Communication Wi-Fi, Bluetooth, Ethernet and PLC
Safety Sensors Laser Scanner; 3D Camera; Ultrasonic Scanners
Power
Battery Li-NMC, 24 V, 40 Ah; Charging time: up to 3 hours (0-80%: 2 hours)
Internal Charger Input: 100-230 V ac, 50-60 Hz / Output: 24 V, max 15 A
Communication
WiFi Dual-band wireless AC/G/N/B
I/Os USB and Ethernet
Communication protocol REST, Modbus
Environment
Ambient Temperature Range +5°C to 50°C (humidity 10-95% non-condensing)
IP Class IP 20
Dimensions
Dimensions 890 x 580 x 352 mm
Height above floor 50 mm
Robot Weight (without load) 62.5 kg
