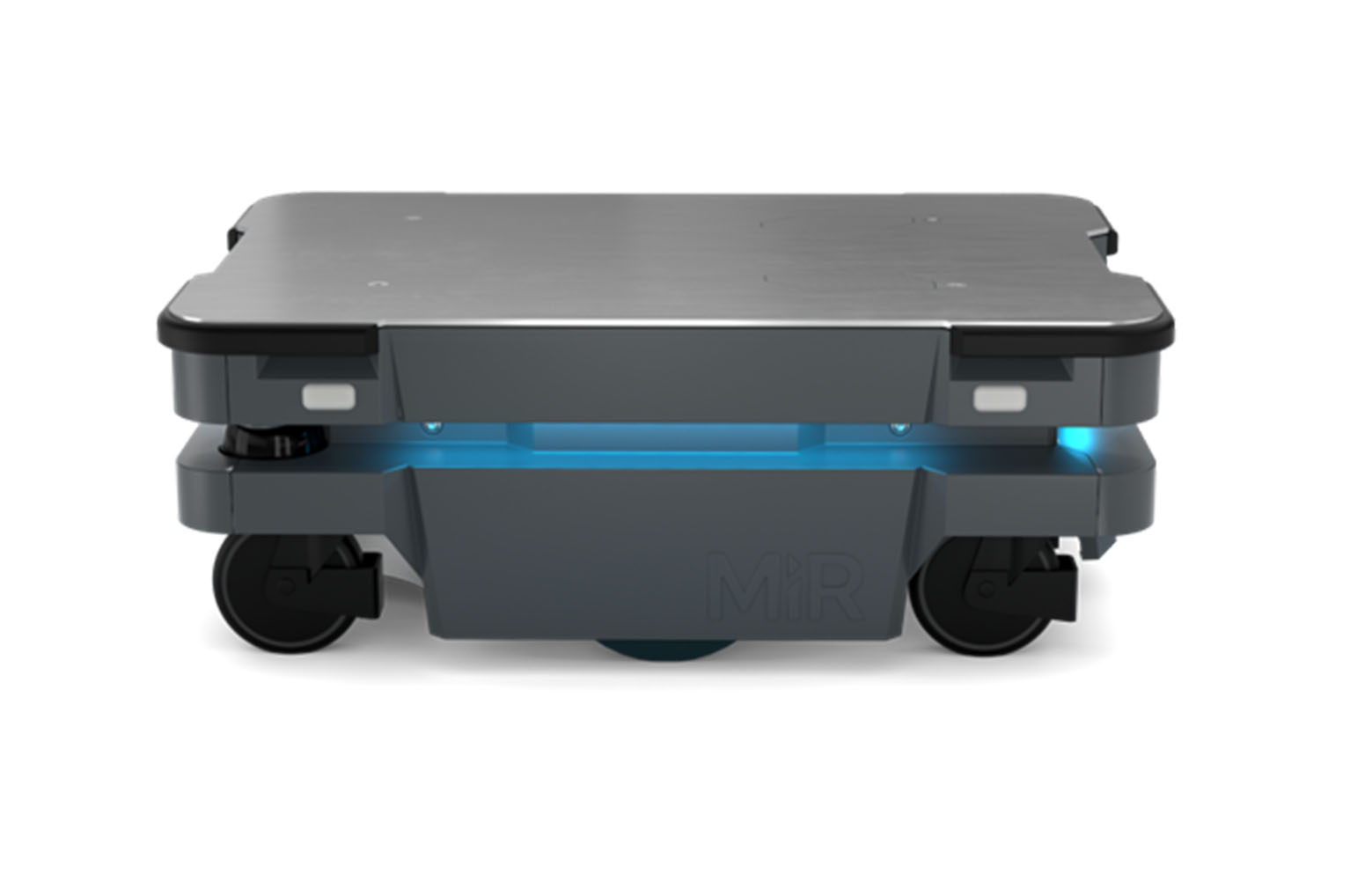

MiR 250

The MiR250 is a more flexible AMR that can work around the clock and is brilliantly simple to setup, for improved productivity. Its smaller footprint and increased adaptability help optimize internal logistics without changing layout.

  • Description
  • Specifications

The MiR250 has a footprint of 580 x 800 mm and a height of only 30 centimeters while still being able to move as much as 250 kg with a speed of 2 meters/second. This makes the AMR more agile than any other AMRs on the market and highly adaptable for challenging environments. Thanks to the small footprint, it can drive in spaces as narrow as 80 centimeters. So, doors and elevators that can be an obstacle for other mobile robots, are not a problem for the MiR250.

The MiR250 is constructed for long lifetime, easy serviceability and work 24/7 with the option for fast battery swap. Further, it has been designed according to current applicable safety standards - we therefore believe it’s the safest AMR on the market.

  • Works around the clock with fast battery swap
  • Robust design ensures a long lifetime
  • Easy serviceability
  • Navigated smoothly and efficiently in dynamic environments
  • ESD version available
Excel To HTML using codebeautify.org
MiR250
Payload
Payload 250 Kg
Acceleration limits with payload 1,0 m/s^2
Speed and Performance
Maximum speed 2.0 m/s
Precision, Docking +/- 5 mm
Minimum width: door Muted personnel detection means: 800 mm
Battery Charging
Charging options MiRCharge 48V & 48V cable charger
MiR Charge 48V The robot communicates with MiR Charge 48V through CAN interface. Charging starts only when the robot connection is present.
Active operation time 10 hours
Charging time, MiRCharge 48V, 10% to 90% 1 hour
Communication
I/O connections 4 digital inputs, 4 digital outputs, 1 Ethernet port
WiFi Dual-band wireless AC/G/N/B
WiFi connection Router: 2.4 GHz and 5 GHz. WiFi adapter: 2.4 GHz and 5 GHz, 2 internal antennas.
Power for top modules 48 V / 20 A, 48 V SafePWR / 20 A shared, 24 V / 2A.
Communication protocol REST, Modbus
Environment
Ambient temperature, operation +5°C to 40°C
Humidity 10-95% non-condensing
Environment Indoor use only
IP Class IP 21
Dimensions
Dimensions 800 x 580 x 300 mm
Height above floor 30 mm
Robot Weight ( Without Load) 83 Kg
Load Surface 800 mm x 580 mm
